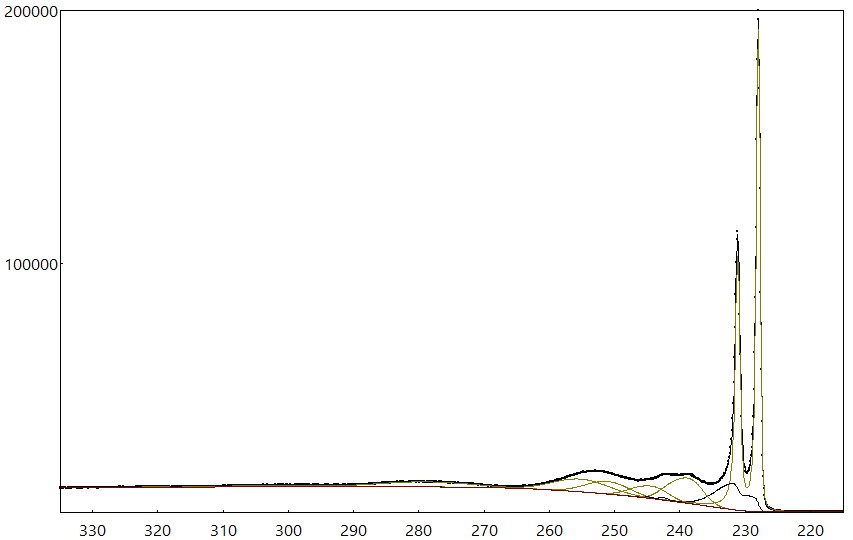

  • Dulce María

    Date: 2025-07-23 17:22

    Fitting of the Mo 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Doniach-Sunjic peak, but it does not reproduce the tip of the two spin-orbit branches and, when zooming in, there is misft in more than one region. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: metallic molybdenum

    • Elements: Mo

    • Sample composition: Mo

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer


    0 votes

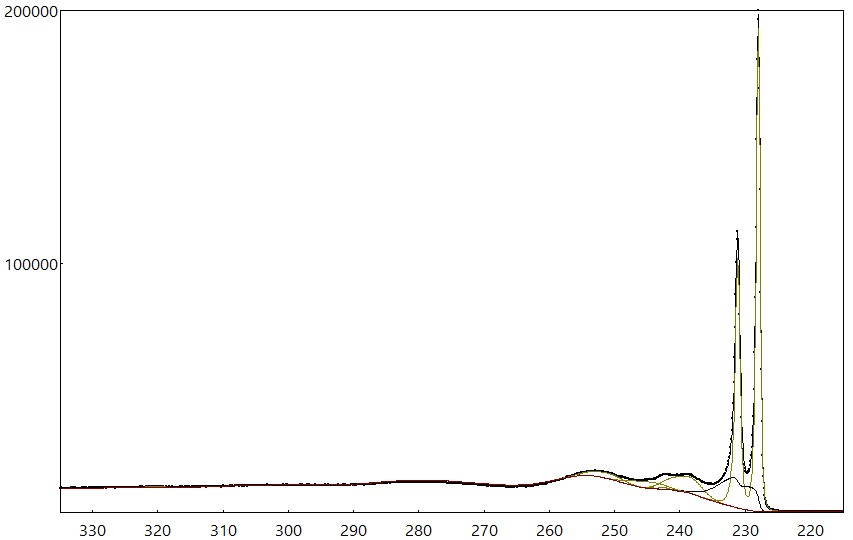

  • Dulce María

    Date: 2025-07-23 17:20

    Fitting of the Mo 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Double-Lorentzian peak, but it does not reproduce the tip of the two spin-orbit branches. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Molybdenum

    • Elements: Mo

    • Sample composition: Mo

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

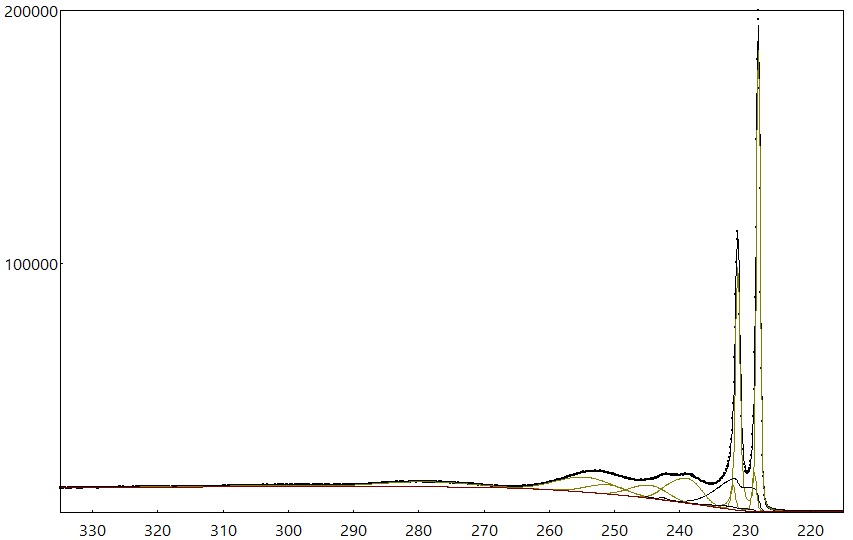

  • Dulce María

    Date: 2025-07-23 17:18

    Fitting of the Mo 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Coupled-Resonances type II peak. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Molybdenum

    • Elements: Mo

    • Sample composition: Mo

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

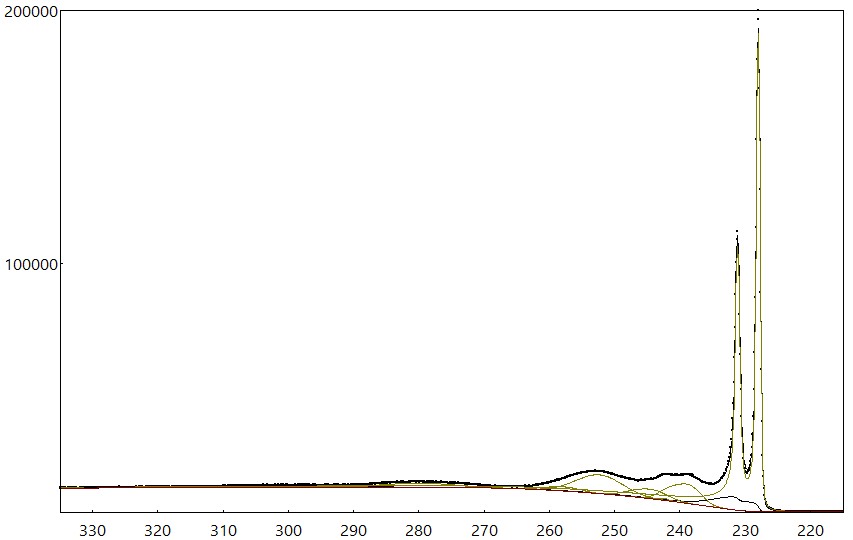

  • Dulce María

    Date: 2025-07-23 17:17

    Fitting of the Mo 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with three Voigt peaks. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Molybdenum

    • Elements: Mo

    • Sample composition: Mo

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes
