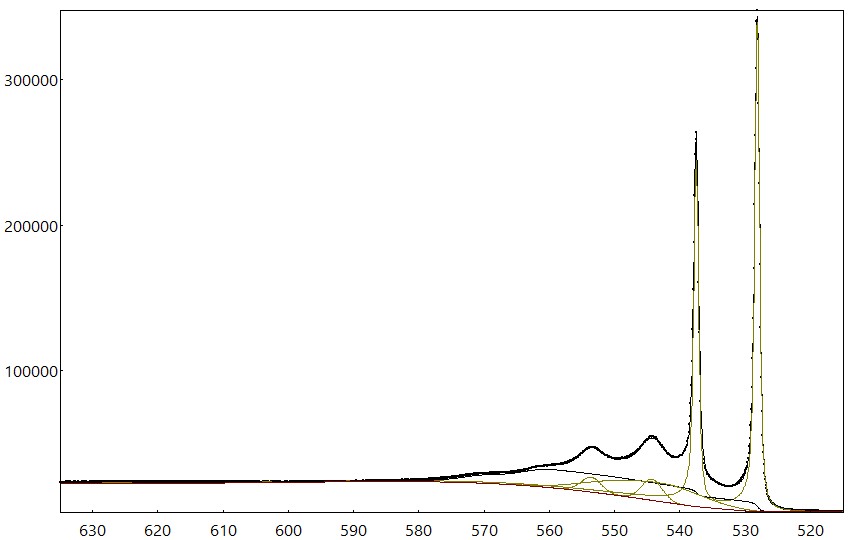

  • Fitting of the Sb 3d photoemission spectrum for the element (reseach grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The branching ratio of each doublet was forced to be equal to the theoretically expected value (0.6925), which was taken from the Scofield tables.Read more
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Sb

    • Elements: Sb

    • Sample composition: Sb

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°

    Equipment and analysis software:

    • Spectrometer mode: FAT

    • Software used: AAnalyzer

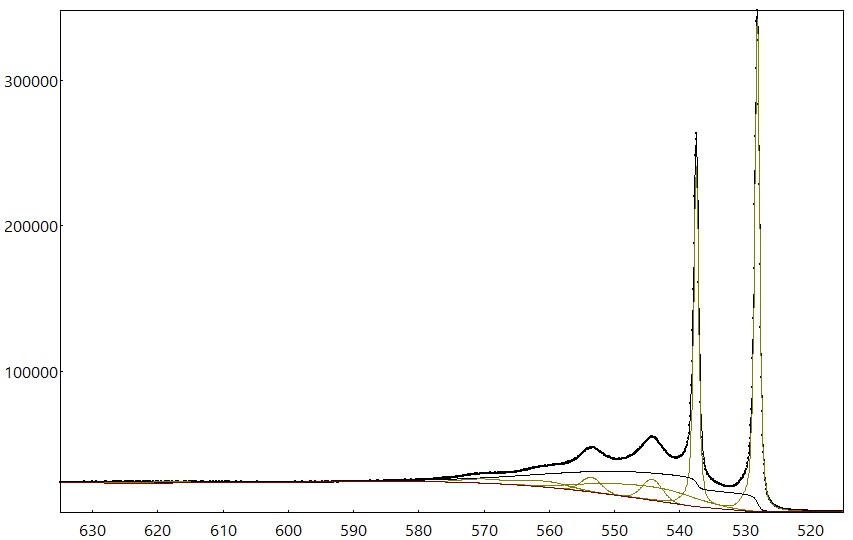

  • Two more peaks, but the fit is better in the circled regions. Data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted)
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

  • The area of the satellite at ~ 545 eV is wrong because a singlet was employed; the area corresponding to the 1/2 branch (at the left of the energy range) is missing.
    Read more

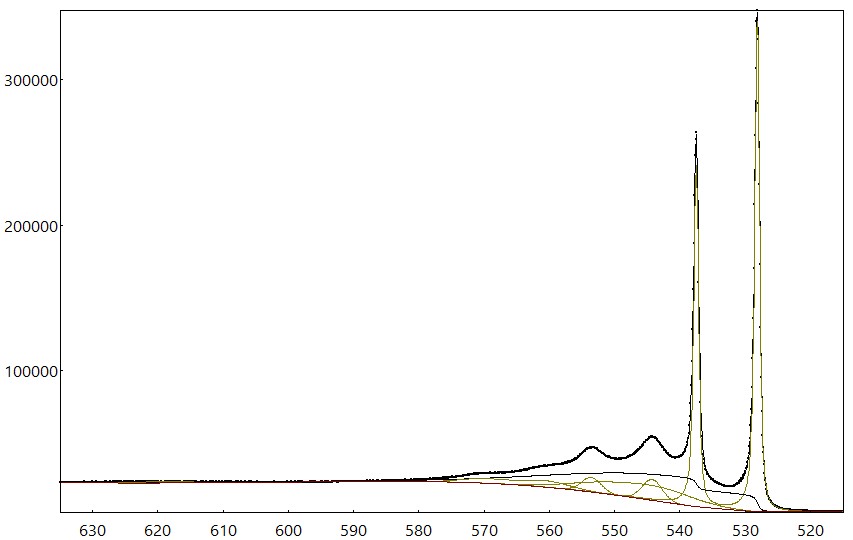

  • This fit is simpler. The big satellite at ~ 545 eV might not be properly fit because the energy range of the data is too short and does not include the 1/2 branch of that peak. The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted.
    Read more

    Equipment and analysis software:

    • Software used: Analyzer

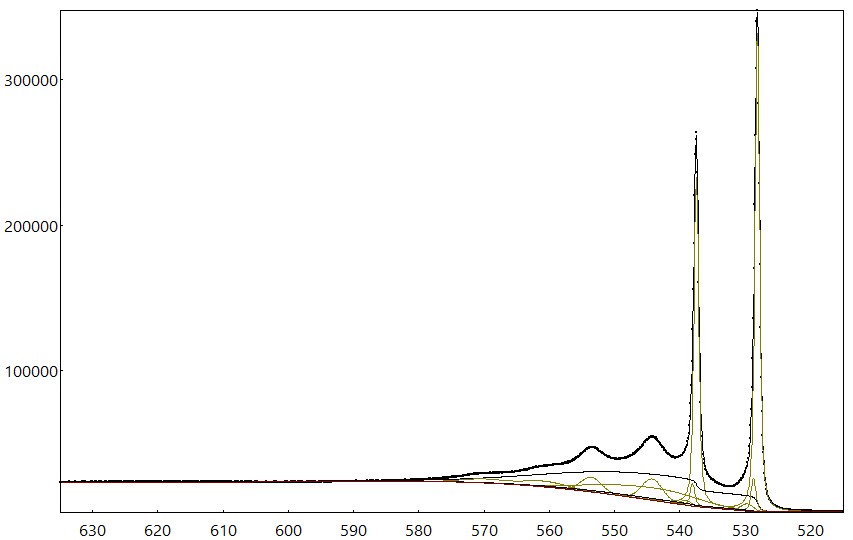

  • Fitting of the Sb 3d photoemission spectrum for the element (reseach grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The spectrum was fitted employing one Double-Lorentzian doublet and four Voigt doublets. The branching ratio was forced to be equal to the theoretically expected value (0.6925), which was taken from the Scofield tables.Read moreRead more
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Sb

    • Elements: Sb

    • Sample composition: Sb

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°

    Equipment and analysis software:

    • Software used: Analyzer

  • Fitting of the Sb 3d photoemission spectrum for the element (reseach grade), data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The spectrum was fitted employing six Voigt doublets. The branching ratio was forced to be equal to the theoretically expected value (0.6925), which was taken from the Scofield tables. Read moreRead more
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Sb

    • Elements: Sb

    • Sample composition: Sb

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90
