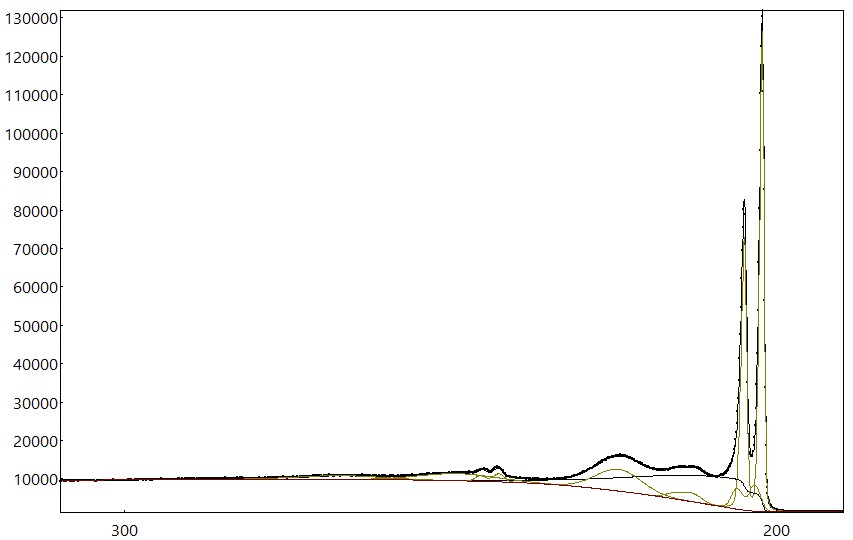

  • Fitting of the Nb 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Coupled-Resonances type II peak, but an additional pseudo-Voigt peak is required to fit the data between the two spin-orbit branches. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: niobium

    • Elements: Nb

    • Sample composition: Nb

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer

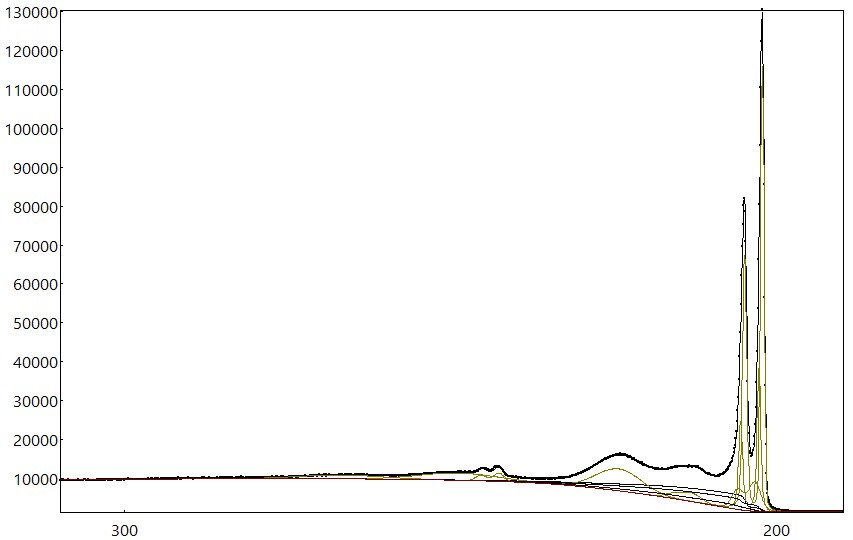

  • Fitting of the Nb 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with three Voigt peaks. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: niobium

    • Elements: Nb

    • Sample composition: Nb

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer

  • Fitting of the Nb 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Double-Lorentzian peak and an additional Voigt peak. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Niobium

    • Elements: Nb

    • Sample composition: Nb

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer

  • Fitting of the Nb 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with one Coupled-Resonances type III peak. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Niobium

    • Elements: Nb

    • Sample composition: Nb

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer
