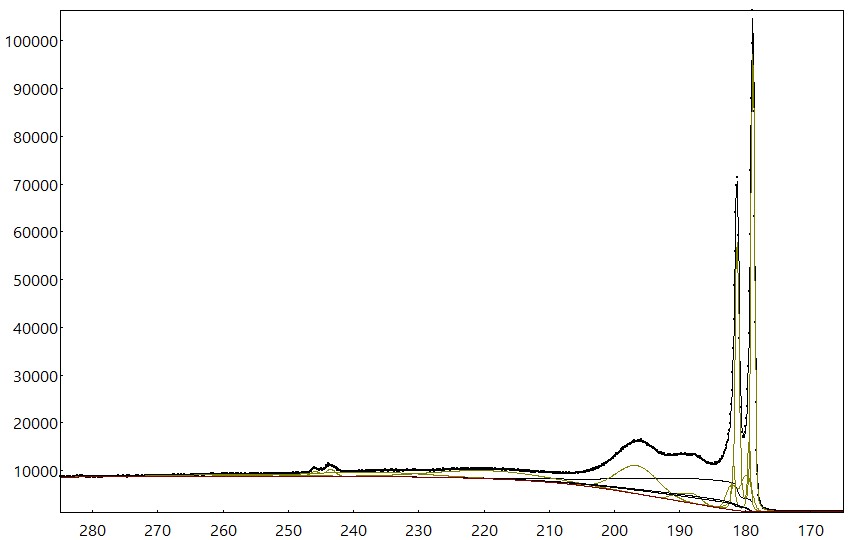

  • Fitting of the Zr 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The branching ratio was forced to be equal to the theoretically expected value (0.6882), which was taken from the Scofield tables.Read more
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Sample material: Zirconium

    • Elements: Zr

    • Sample composition: Zr

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Though it has more peaks, the fit closely reproduces the data in the available range of binding energy. Same data shown above, which were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted)
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Less peaks. There is a plasmon at the left; the energy range is too short. The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted.
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Fitting of the Zr 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The spectrum was fitted employing one Double-Lorentzian doublet and three Voigt doublets. The branching ratio was forced to be equal to the theoretically expected value (0.6882), which was taken from the Scofield tables.
    Read more

    Information about the sample:

    • Sample material: Zr

    • Elements: Zr

    • Sample composition: Zr

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°
