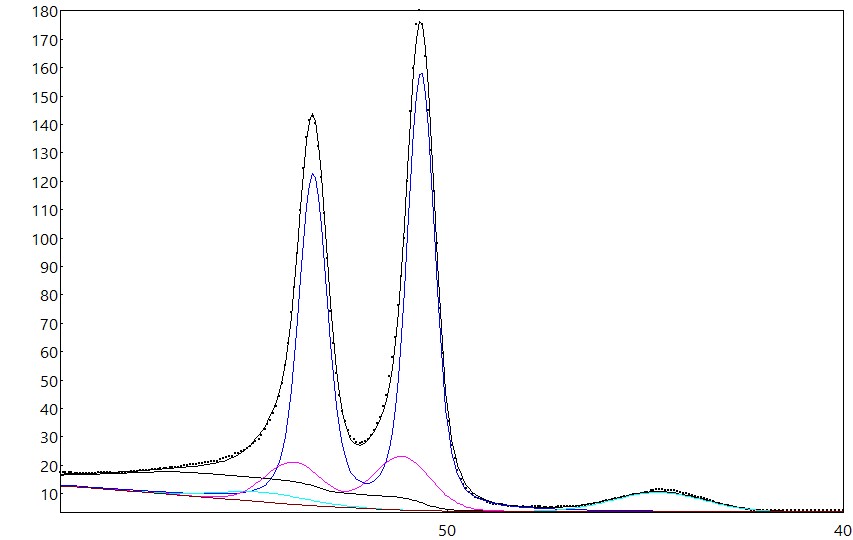

  • Fitting of the Os 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a doublet correlated with the DL line shape, the 5p component was modeled with a doublet with the Gaussian line shape. This line shape best fits the slopes after the CR line shape. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Fitting of the Os 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a doublet correlated with the Voigt line shape, in addition to a Voigt doublet, the 5p component was modeled with a doublet with the Gaussian line shape. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Fitting of the Os 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a doublet correlated with the D&S line shape, in addition to a Gaussian doublet, the 5p component was modeled with a doublet with the Gaussian line shape. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Fitting of the Os 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with two correlated Coupled-Resonances type III peak. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    Equipment and analysis software:

    • Spectrometer mode: MONO

    • Software used: aanalyzer

  • Fitting of metallic osmium with a correlated doublet and the shape of the double Lorentzian curve with background narrow Shirley
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    Equipment and analysis software:

    • Software used: aanalyzer

  • Os 4f spectrum obtained from metallic Osmium flat surface, published data were provided by DOI: 10.1103/PhysRevMaterials.3.025001.The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os 4f

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Os 4f spectrum obtained from metallic Osmium flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os 4f

    • Elements: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Os 4f spectrum obtained from metallic Osmium flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Sample information

    • Elements: Os 4f/5p

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: Data acquisition parameters

    • Take-off angle: 15

    Equipment and analysis software:

    • Brand: Equipment information

    • Model:

    • Spectrometer mode:

    • Software used: AAnalyzer

  • Os 4f spectrum obtained from metallic Osmium flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Os 4f/5p

    • Elements: Os

    • Sample composition: Os

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer
