  • Dulce María

    Date: 2025-07-23 17:51

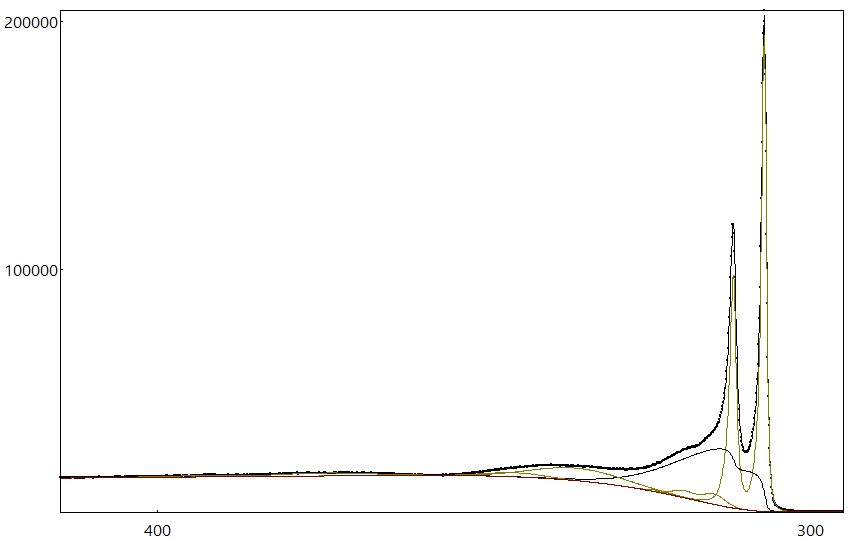

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with a Doniach-Sunjic lineshape and an additional Voigt peak, but the fit fails in more than one region. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-07-23 17:48

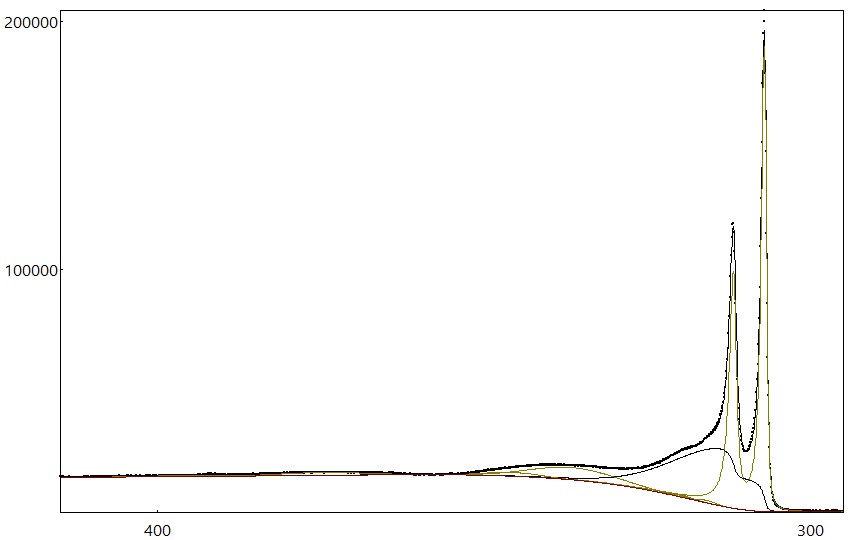

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with a Double-Lorentzian lineshape, which does not reproduce the tip of the 3d5/2 branch. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-07-23 17:45

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with a Coupled-Resonances type II lineshape. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-07-23 17:44

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with three Voigt peaks. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Spectrometer mode:

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-02-17 17:59

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). In this approach, the main signal was fitted with a Doniach-Sujic peak and an additional Voigt peak was required to improve the fitting. The total background was modeled under the active background approach in which the extrinsic background was modeled with a Tougaard type background, while the intrinsic background was represented with a Narrow Shirley background and a set of symmetric peaks.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-02-17 17:57

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with a Double-Lorentzian lineshape. The total background was modeled under the active background approach in which the extrinsic background was modeled with a Tougaard type background, while the intrinsic background was represented with a Narrow Shirley background and a set of symmetric peaks.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-02-17 17:55

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with three Voigt peaks. The total background was modeled under the active background approach in which the extrinsic background was modeled with a Tougaard type background, while the intrinsic background was represented with a Narrow Shirley background and a set of symmetric peaks.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer


    0 votes

  • Dulce María

    Date: 2025-02-17 17:51

    Fitting of the Rh 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was fitted with an Coupled-Resonances type II lineshape. The total background was modeled under the active background approach in which the extrinsic background was modeled with a Tougaard type background, while the intrinsic background was represented with a Narrow Shirley background and a set of symmetric peaks..
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Rhodium

    • Elements: Rh

    • Sample composition: Rh

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 23.5

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: PHI

    • Model: Quantum 2000

    • Software used: AAnalyzer


    0 votes
