  • Fitting of the Ta 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Ta 4f

    • Elements: Ta

    • Sample composition: Ta

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

  • Fitting of the Ta 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Ta

    • Elements: Ta

    • Sample composition: Ta

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

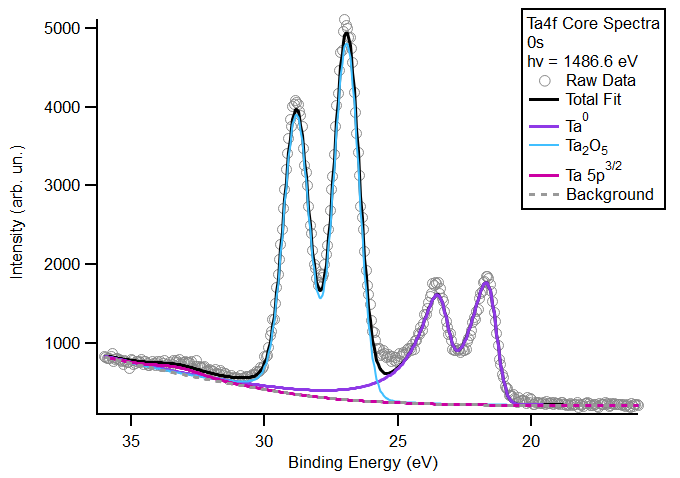

  • The peak at 32.5 is Ta 5p3/2
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

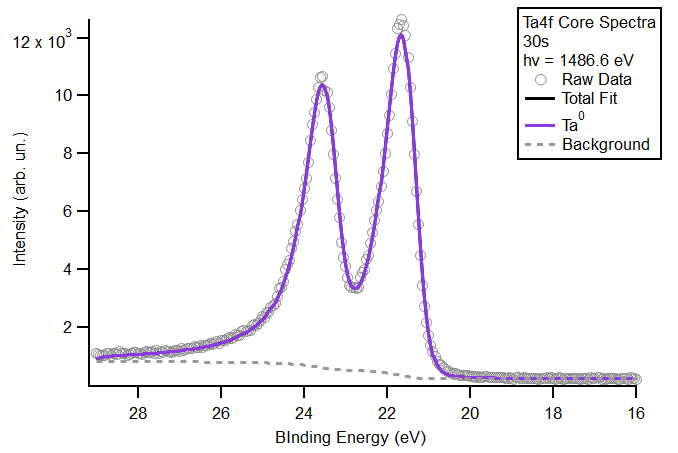

  • Ta 4f spectrum obtained from metallic Tantalum flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Ta 4f

    • Elements: Ta

    • Sample composition: Ta

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Spectrometer mode: FAT

    • Software used: AAnalyzer
