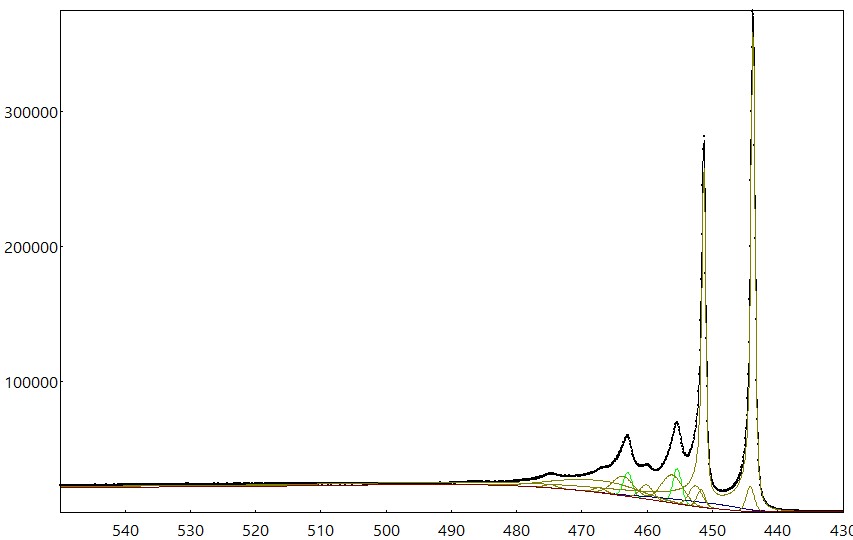

  • Fit of the In 3d from pure In. Data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).Read more
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: pure In

    • Elements: In

    • Sample composition: In

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.3

    • Take-off angle: 90°

    Equipment and analysis software:

    • Spectrometer mode: FAT

    • Software used: AAnalyzer

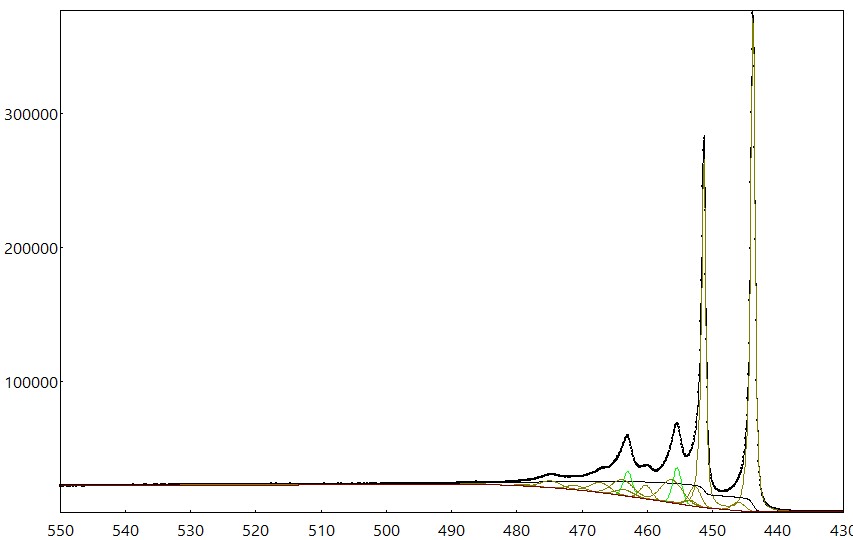

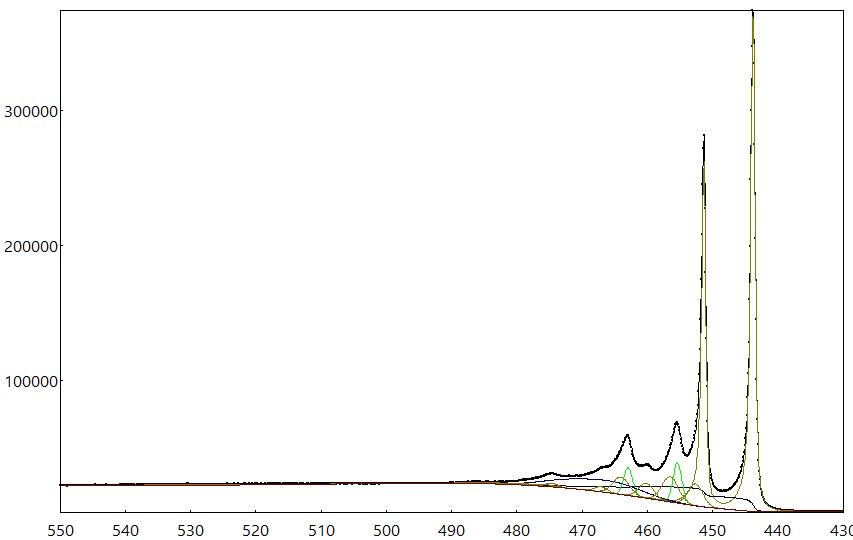

  • Same number of peaks, but the plasmon at 466 eV is modeled as a doublet rather than a singlet. The fit is better in the cirlced region. Data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

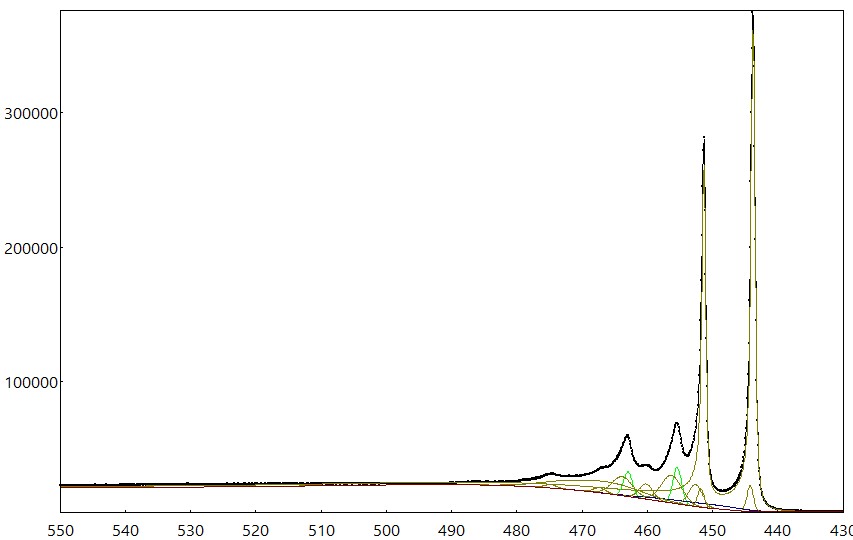

  • The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted. X-ray incident angle: 55°. The fit required the use of asymmetric double-Lorentzian lineshapes for the main peak. The SVSC parameter of the satellites is about the same as for the main peak.Read less
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: indium

    • Elements: In

    • Sample composition: In

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Spectrometer mode: FAT

    • Software used: Analyzer

  • InGaAs deposited by MBE on GaAs substrate. In 3d in InGaAs treated thermally at 300 °C.
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: InGaAs

    • Elements: In

    • Sample composition: In0.2Ga0.8As

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 15

    • Take-off angle: 85

    Equipment and analysis software:

    • Brand: ?

    • Model: ?

    • Spectrometer mode: ?

    • Software used: Analyzer
