  • Muestras en polvo de PdCo propiedad del Centro de Investigación y Desarrollo Tecnológico en Electroquímica, S. C.
    Read more

    Information about the sample:

    • Sample material: PdCo

    • Elements: Pd

    Data acquisition parameters:

    • Photon source: Al Ka

    Equipment and analysis software:

    • Software used: aanalyzer

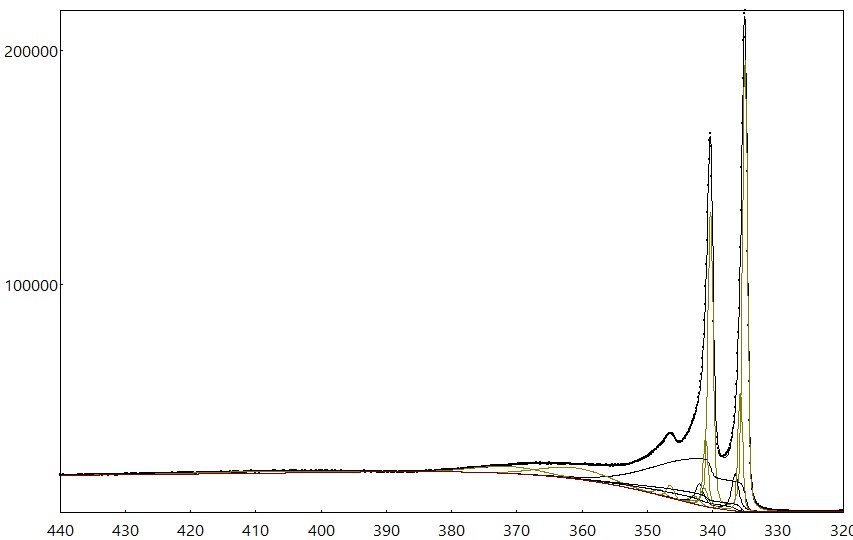

  • Fitting of the Pd 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The branching ratio was forced to be equal to the theoretically expected value (0.692), which was taken from the Scofield tables.Read more
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Sample material: Palladium

    • Elements: Pd

    • Sample composition: Pd

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°

    Equipment and analysis software:

    • Software used: AAnalyzer

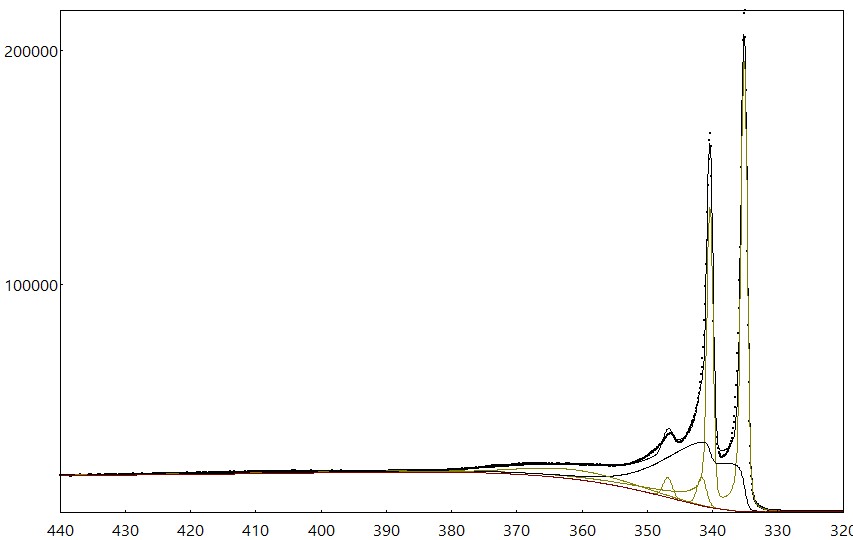

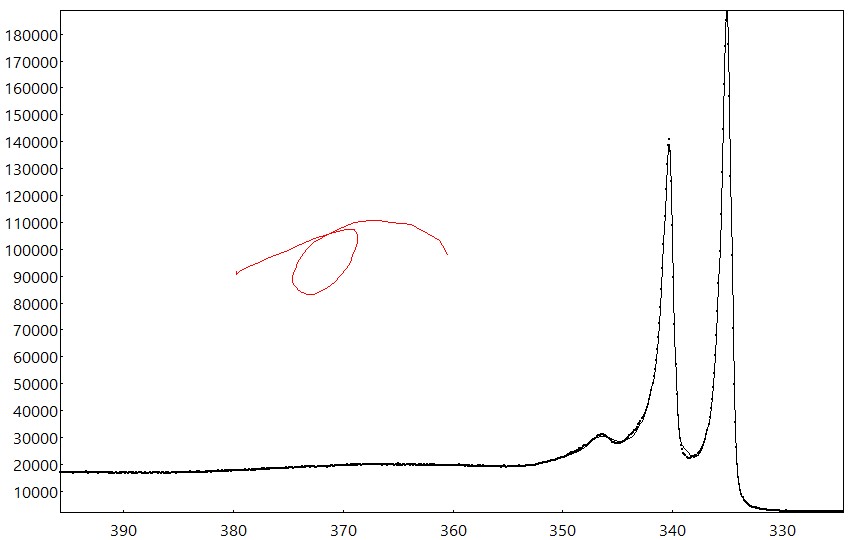

  • The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted. The double Lorentzian for the main peak was divided into two singlest with correlated areas.the section in the red circle does not fit well
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Pd 3d

    • Elements: Pd

    • Sample composition: Pd

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 14.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand:

    • Model:

    • Spectrometer mode: FAT

    • Software used: AAnalyzer

  • Database
    The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted. The double Lorentzian for the main peak was divided into two singlest with correlated areas.
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Pd 3d

    • Elements: Pd

    • Sample composition: Pd

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 14.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand:

    • Model:

    • Spectrometer mode: FAT

    • Software used: AAnalyzer
