Ag 3d forum

Posts

Moderators

Information

Search

You must login to post

  • Database

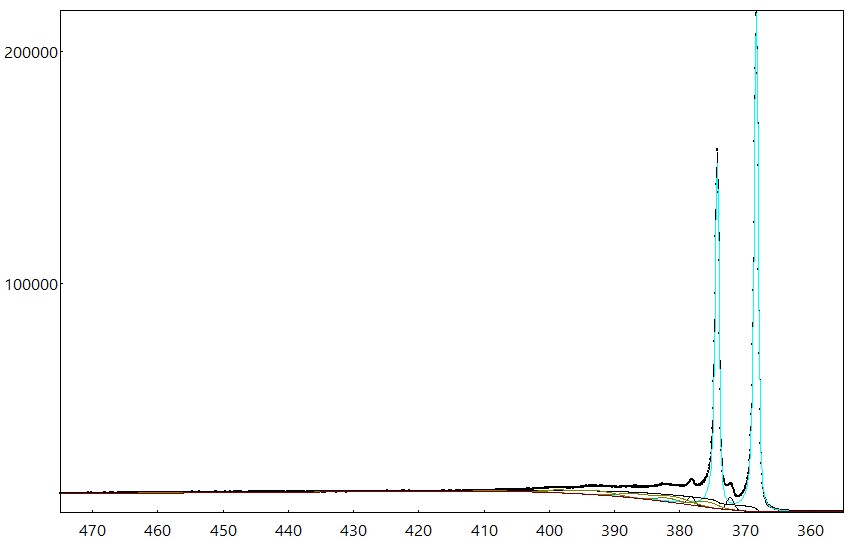

    Fitting of the Ag 3d photoemission spectrum for the element (research grade). Data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).Read more
    Read more

    Information about the sample:

    • Sample material: Silver

    • Elements: Ag

    • Sample composition: Ag

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.34

    • Take-off angle: 90°

    Equipment and analysis software:

    • Software used: AAnalyzer

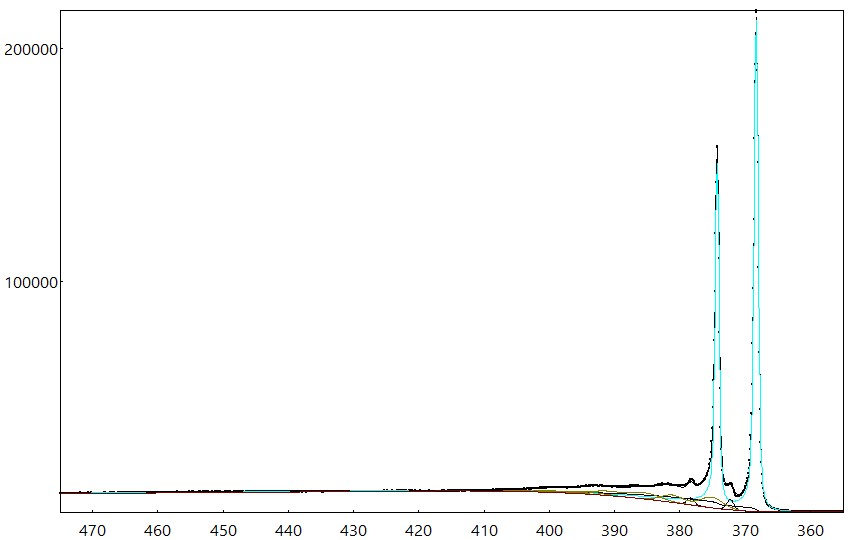

  • One more peak, but the fit is better in the cirlced region. Data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted).
    Read more

    Equipment and analysis software:

    • Software used: AAnalyzer

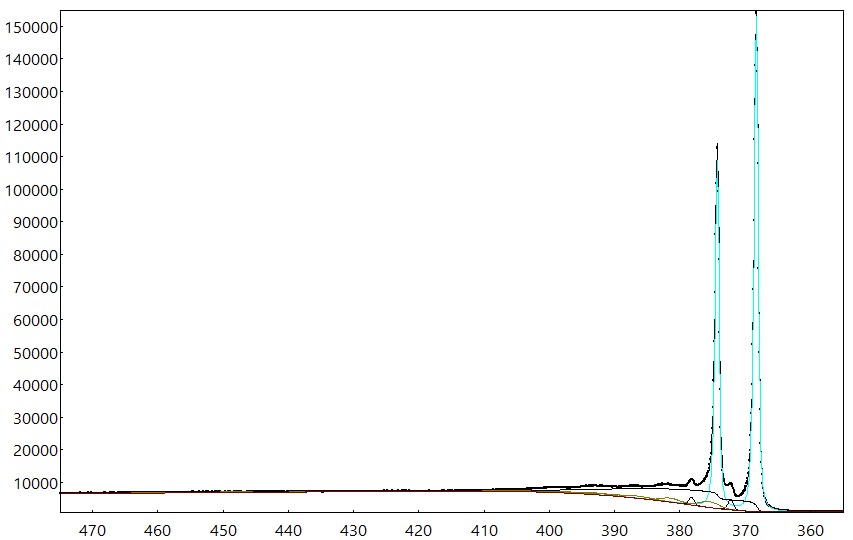

  • The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted. This shows the small peaks added. There is still a small problem in the region of the circled area.
    Read more

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Sample information

    • Elements: pure silver

    • Sample composition: Ag

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: Data acquisition parameters

    • Take-off angle: 14.3

    Equipment and analysis software:

    • Model:

    • Spectrometer mode:

    • Software used: AAnalyzer

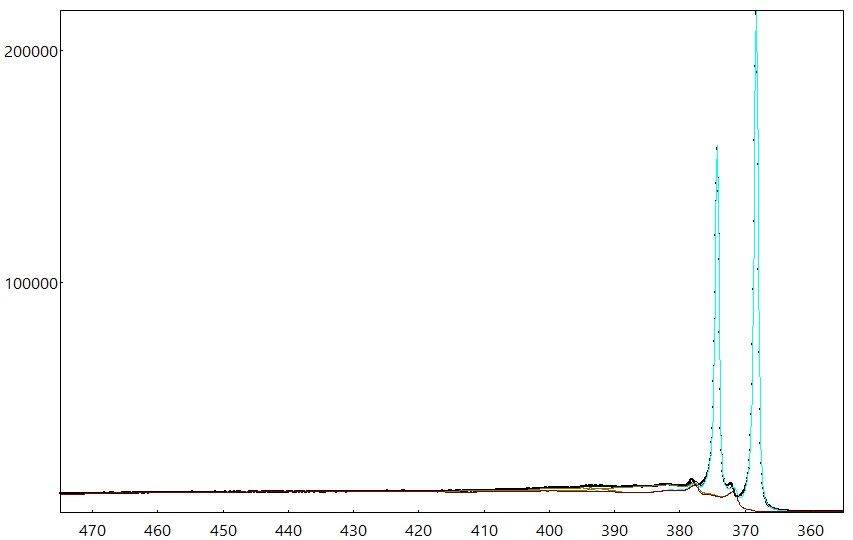

  • The use of the spectrum requires acknowledging https://xpslibrary.com/, the data is copyrighted. The double Lorentzian for the main peak was divided into two singlest with correlated areas. A small peak at ~ 368 eV was added because all the experimental points in the main peak were slightly on the left and to to make it similar to other fits of the 3d core level of elements in the same row (e.g., post 502 of Sn 3d). One doublet was added to reproduce the very small peak at ~ 382 eV, which corresponding 3/2 branch is around 376 eV.
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Sample information

    • Elements: pure silver

    • Sample composition: Ag

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Spectrometer mode: FAT

    • Software used: Analyzer

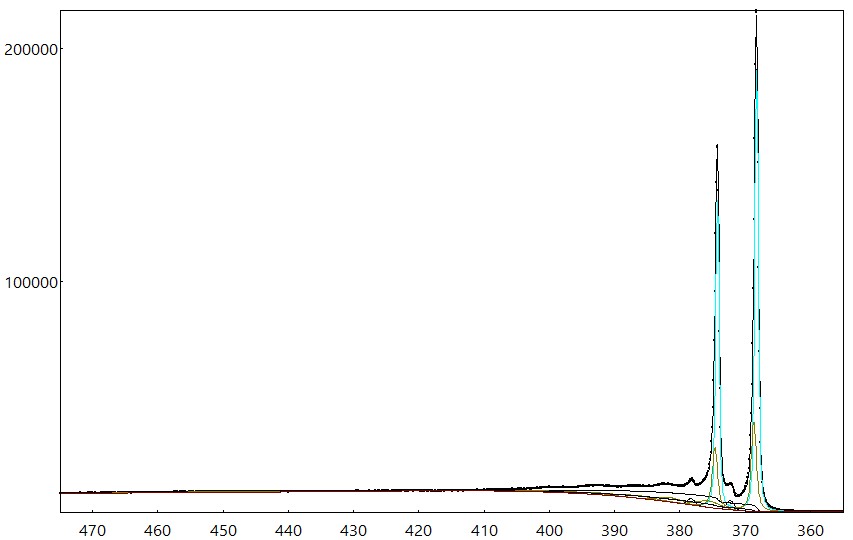

  • Fitting of the Ag 3d photoemission spectrum for the element (research grade), data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). Read more
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Silver Ag (3d5) & Ag (3d3)

    • Elements: Pure Ag

    • Sample composition: Ag

    Equipment and analysis software:

    • Software used: Analyzer

  • Spectra obtain from https://xpslibrary.com/xps-aes-spectra-libraries/
    Read more

    Equipment and analysis software:

    • Software used: Analyzer
