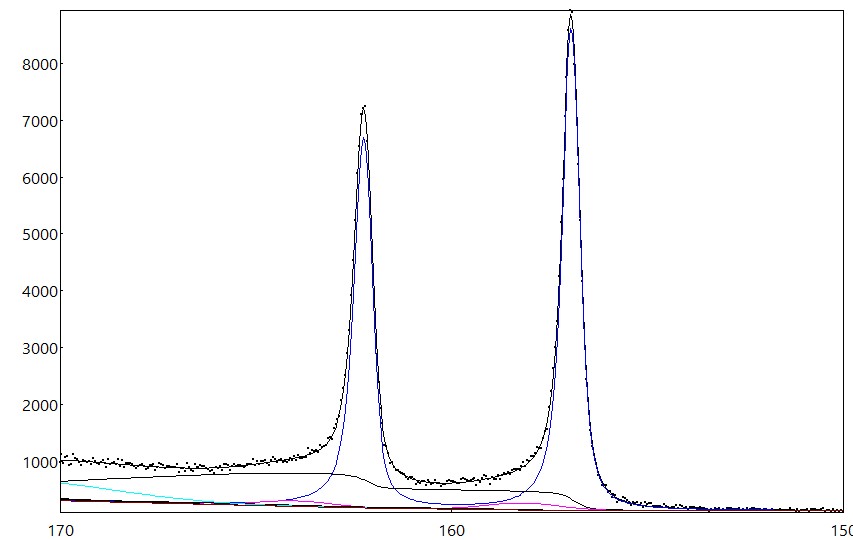

  • Fitting of the Bi 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a doublet correlated with the Voigt line shape, and a Gaussian doublet was added to resolve the maximum of the 7/2 and 5/2 components. Even with the additional component, it was not possible to resolve the maximum of the components.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

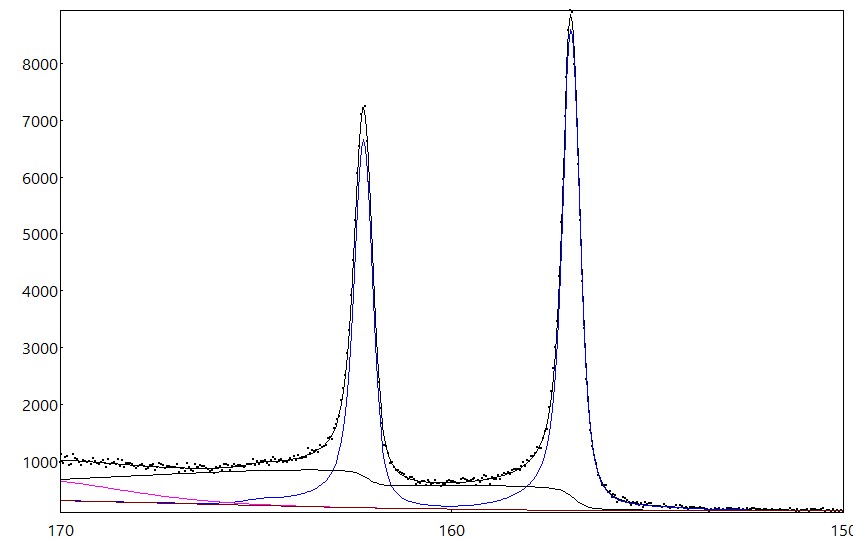

  • Fitting of the Bi 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a doublet correlated with the Double Lorentzian line shape, and a Gaussian doublet was added to resolve the maximum of the 7/2 and 5/2 components.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

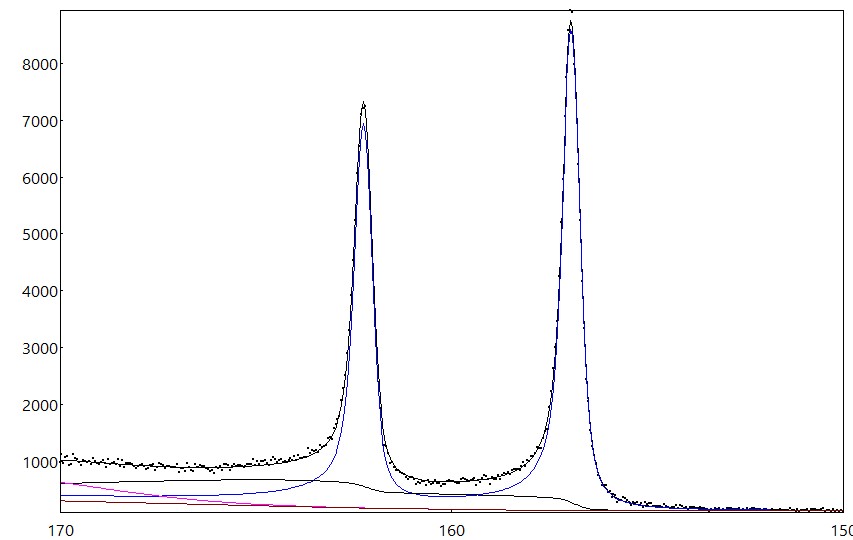

  • Fitting of the Bi 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was modeled with a D&S line shape. In this particular case, only a doublet and a Gaussian component were used for the component close to 170 eV.
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 4.3

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: AAnalyzer

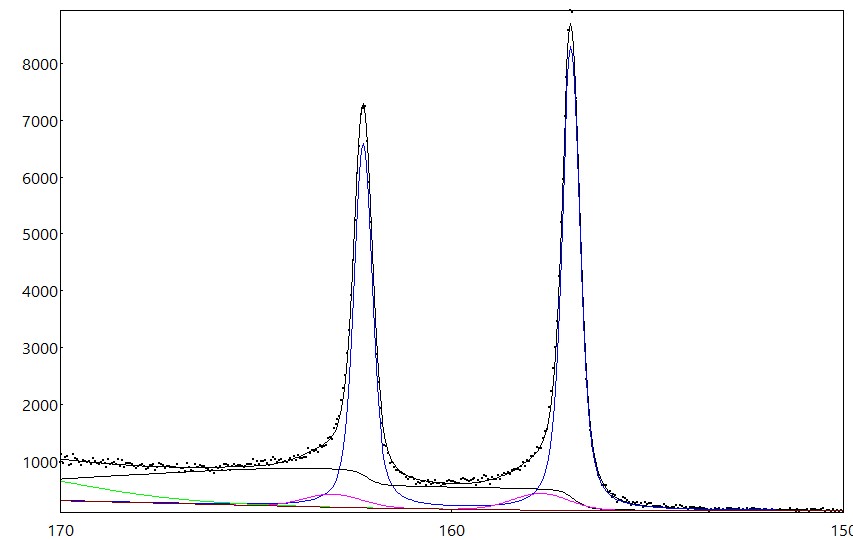

  • Fitting of the Bi 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The main peak was a double correlated fitted with a Coupled-Resonances type III lineshape, it is capable of fitting the tip of the 3d5/2 branch, unlike a CR type I or a Voigt lineshape. The total background was modeled with a combination of a Tougaard type background and the interchannel coupling with valence band losses background.
    Read more

    Files :

    • You must be logged-in to download data

  • Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka

    Equipment and analysis software:

    • Spectrometer mode: MONO

    • Software used: aanalyzer

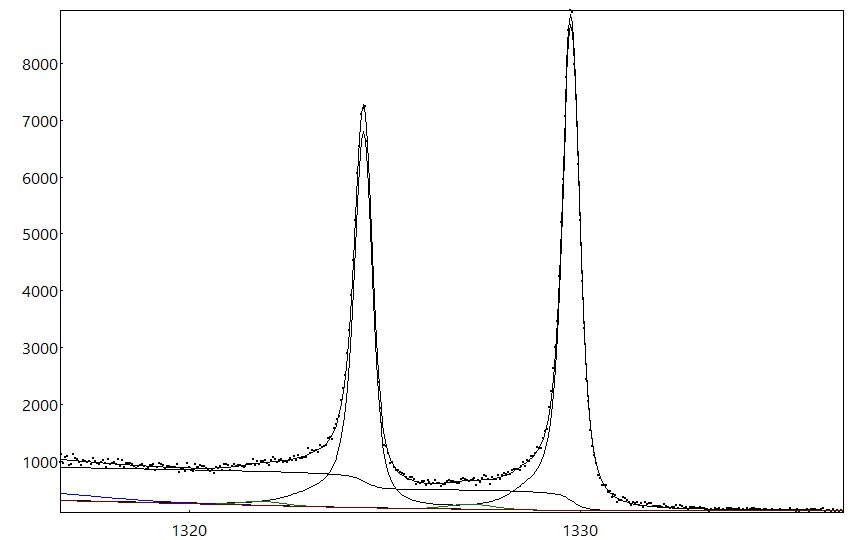

  • metallic bismuth fit, performed with a correlated doublet and the shape of the double Lorentzian curve with background narrow Shirley
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    Equipment and analysis software:

    • Software used: aanalyzer

  • Bi 4f spectrum obtained from metallic Osmium flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bismuth

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 10

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: aanalyzer

  • Bi 4f spectrum obtained from metallic Osmium flat surface, published data were provided by Vincent Crist (XPS library website, https://xpslibrary.com/). The branching ratio of each doublet was forced to be equal to the theoretically expected value taken from the Scofield Tables
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Bi

    • Elements: Bi

    • Sample composition: Bi 4f

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Software used: aanalyzer

  • Fitting of the Bi 4f photoemission spectrum for the element (research grade), data were provided by Vincent Crist (The use of the spectrum requires acknowledging XPS library website, https://xpslibrary.com/, the data is copyrighted). The spectrum was fitted employing one asymmetric Double-Lorentzian doublet and two gaussian doublets. The branching ratio was forced to be equal to the theoretically expected value (0.7863), which was taken from the Scofield tables.
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Metallic Bi

    • Elements: Bi

    • Sample composition: Bi

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 14.25

    • Take-off angle: 90°

    Equipment and analysis software:

    • Software used: AAnalyzer
