  • Dulce María

    Date: 2026-04-27 17:44

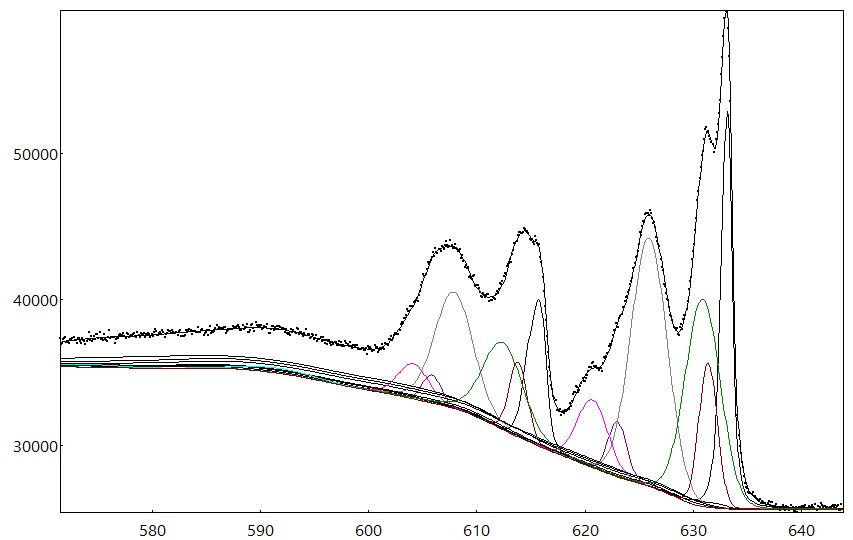

    The background was modeled with a Tougaard background (calculated with a NiO-specific energy loss function) and a Narrow-Shirley background correlated for the main and satellite features, Sample was processed at the Nanofilm Processing and Characterization Laboratory, Cinvestav-Queretaro, Mexico. Ni was sublimated on a silicon substrate at high vaccum and then transferred into a tubular furnace for the oxidation
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Oxidized Ni

    • Elements: Ni, O, C

    • Sample composition: NiO0.8

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: ThermoFisher, assembled by Intercovamex

    • Model: Alpha100, XR5

    • Spectrometer mode: large angle, small area

    • Software used: AAnalyzer


    0 votes

  • Alberto

    Date: 2023-11-09 18:47

    Besides using a DL, a extra peak was added
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: Metallic nickel

    • Elements: Ni

    • Sample composition: Ni

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 85

    Equipment and analysis software:

    • Software used: aanalyzer


    0 votes

  • Alberto

    Date: 2023-10-23 23:39

    This post is described in the document titled "A formal expression for the photoemission signal and the angular transmission function" that can be found at http://www.qro.cinvestav.mx/~aherrera/reportesInternos/formalExpressionXPSIntensity.pdf
    Read more

    Files :

    • You must be logged-in to download data

    Information about the sample:

    • Shape: Flat surface

    • Sample material: metallic nickel

    • Elements: Ni

    • Sample composition: Ni

    Data acquisition parameters:

    • Photon source: Al Ka monochromatic

    • Pass energy: 15

    • Take-off angle: 85

    Equipment and analysis software:

    • Brand: ThermoFisher

    • Model: Alpha110

    • Spectrometer mode: large angle small area

    • Software used: aanalyzer


    0 votes

  • Dulce María

    Date: 2022-03-18 17:56

    The spectra were obtained from the surface of a metallic nickel thick sample exposed to UHP O2 at 300°C for 20 min in a tubular furnace. The six doublets are associated to NiO.
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: oxidized nickel film

    • Elements: Ni, O, C

    • Sample composition: NiO

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 15

    • Take-off angle: various

    Equipment and analysis software:

    • Brand: ThermoFisher

    • Model: Alpha110

    • Spectrometer mode: small area, large angle

    • Software used: Analyzer


    0 votes

  • Database

    Dulce María

    Date: 2021-10-01 01:16

    The spectra were obtained from the surface of a metallic nickel thick sample exposed to UHP O2 at 100°C for 8 min in a tubular furnace. The spectra were fitted through the block approach* and are displayed normalized. The main peak (shown in olive green) corresponds to the metallic component; the five doublets are associated to the oxide components. Data included in a Master Degree Thesis (Guzmán-Bucio et al. "Oxidation mechanism of metallic nickel," to be published). * A. Herrera-Gómez, F.S. Aguirre-Tostado, Y. Sun, P. Pianetta, Z. Yu, D. Marshall, R. Droopad, W.E. Spicer, Photoemission from the Sr/Si(001) interface, J. Appl. Phys. 90 (2001) 6070–6072. https://doi.org/10.1063/1.1415758.
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Partially oxidized Ni

    • Elements: Ni, O, C

    • Sample composition: Ni2O3

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 15

    • Take-off angle: various (from top to bottom 90°, 70°, 50°, 40°)

    Equipment and analysis software:

    • Brand: ThermoFisher

    • Model: Alpha110

    • Spectrometer mode: small area, large angle


    1 votes

  • Database

    Dulce María

    Date: 2021-10-01 01:06

    The main doublet was fitted with three symetric Voigt doublets (shown in navy blue, blue and aqua). The spectra was obtained from the surface of a metallic nickel thick sample deposited by thermal sublimation in UHV conditions. Data included in a Master Degree Thesis (Guzmán-Bucio et al. "Oxidation mechanim of metallic nickel," to be published).
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Metallic Ni

    • Elements: Ni

    • Sample composition: Ni

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: ThermoFisher

    • Model: Alpha110

    • Spectrometer mode: small area, large angle

    • Software used: Analyzer


    1 votes

  • Database

    Dulce María

    Date: 2021-10-01 01:00

    The main photoemission line (displayed in blue) was fitted with a Double-Lorentzian lineshape. The spectra was obtained from the surface of a metallic nickel thick sample deposited by thermal sublimation in UHV conditions. Data included in a Master Degree Thesis (Guzmán-Bucio et al. "Oxidation mechanism of metallic nickel," to be published).
    Read more

    Information about the sample:

    • Shape: Flat Surface

    • Sample material: Metallic Ni

    • Elements: Ni

    • Sample composition: Ni

    Data acquisition parameters:

    • Photon source: Al Ka (monochromatic)

    • Pass energy: 15

    • Take-off angle: 90

    Equipment and analysis software:

    • Brand: ThermoFisher

    • Model: Alpha110

    • Spectrometer mode: small area, large angle


    0 votes
